STANDARD

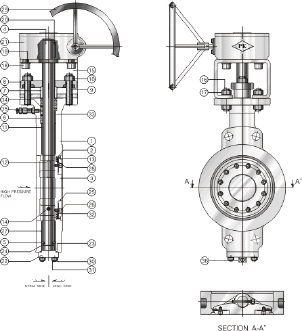

MATERIAL LIST
|
|
MATERIAL
ACCORDING TO ASTM
|
|
|
NO
|
PART
NAME
|
MATERIAL
|
Q'TY
|
RAMARK
|
|
S
T
A
N
D
A
R
D
|
1
|
BODY
|
A216-WCB
|
A217-WC9
|
A351-CF8M
|
1
|
|
|
2
|
SEAT SURFACE
|
316 SS Faced
|
STELLITE NO.6 Faced
|
Integral
|
1
|
Note.2
|
|
3
|
DISC
|
A216-WCB + ENP
|
A217-WC9 + ENP
|
A351-CF8M
|
1
|
Note.1
|
|
4
|
STEM
|
A479-410
|
A479-410
|
A564-630
|
1
|
|
|
5
|
RETAINER RING
|
A479-410
|
A479-410
|
A479-316
|
1
|
|
|
6
|
PACKING
|
Graphite
|
Graphite
|
Graphite
|
1
|
Set
|
|
7
|
PACKING GLAND
|
A576-1020 + Cr
|
A479-410
|
A479-316
|
1
|
|
|
8
|
GLAND FLANGE
|
A105 or A576-1020(S20C)
|
A105 or A576-1020(S20C)
|
A351-CF8
|
1
|
|
|
9
|
GLAND BOLT
|
A193-B7
|
A193-B7
|
A193-B8
|
2\4
|
|
|
10
|
GLAND NUT
|
A194-2H
|
A194-2H
|
A194-8
|
2\4
|
|
|
11
|
BUSH BEARING
|
A479-304 + Nitr.
|
A479-316 + Nitr.
|
A479-316 + HCr. Plating
|
1
|
Note.1
|
|
12
|
KEY
|
A479-410
|
A479-410
|
A564-630
|
1
|
|
|
13
|
SEAL RING
|
316 SS + GRAPHITE
|
316 SS + GRAPHITE
|
316 SS + GRAPHITE
|
1
|
Laminated
|
|
14
|
TAPER PIN
|
410 SS
|
410 SS
|
A564-630
|
1
|
|
|
15
|
YOKE
|
A576-1020(S20C)
|
A576-1020(S20C)
|
A576-1020 + Zn. Plating
|
1
|
|
|
16
|
YOKE BOLT
|
A193-B7
|
A193-B7
|
A193-B8
|
|
|
|
17
|
YOKE NUT
|
A194-2H
|
A194-2H
|
A194-8
|
|
|
|
18
|
MOUNTING BOLT
|
A193-B7 or EQ.
|
A193-B7 or EQ.
|
A193-B7 or EQ.
|
|
|
|
19
|
SPRING WASHER
|
STEEL
|
STEEL
|
304 SS
|
|
|
|
20
|
KEY
|
A576-1045
|
A576-1045
|
A576-1045
|
1
|
|
|
21
|
GEAR BOX
|
DUCTILE
|
DUCTILE
|
DUCTILE
|
1
|
|
|
22
|
CAP
|
A576-1020(S20C)
|
A240-304
|
A240-316
|
1
|
|
|
23
|
GASKET (CAP)
|
304 SS + GRAPHITE
|
304 SS + GRAPHITE
|
316 SS + GRAPHITE
|
1
|
Spiral wound
|
|
24
|
THRUST BUSH
|
A53
|
A53
|
A53
|
1
|
|
|
25
|
SEAT RETAINER
|
A193-B7
|
A193-B16
|
A193-B8
|
1
|
|
|
26
|
RETAINER BOLT
|
A193-B8
|
A193-B8
|
A193-B8M
|
|
|
|
27
|
BUSH BEARING
|
A479-304 + Nitr.
|
A479-304 + Nitr.
|
A479-316 + HCr. Plating
|
1
|
Note.1
|
|
28
|
GASKET
|
304 SS + GRAPHITE
|
304 SS + GRAPHITE
|
316 SS + GRAPHITE
|
1
|
Spiral wound
|
|
29
|
HANDWHEEL
|
A53
|
A53
|
A53
|
1
|
|
|
30
|
CAP BOLT
|
A193-B7
|
A193-B16
|
A193-B8
|
4\8
|
|
|
31
|
CAP NUT
|
A194-2H
|
A194-4
|
A194-8
|
4\8
|
|
|
32
|
SEAL RING PIN
|
A479-304
|
A479-304
|
A479-316
|
1
|
|
|
33
|
SPACER
|
A479-304
|
A479-304
|
A479-316
|
1
|
|
|
O
P
T
I
O
N
|
2
|
SEAT SURFACE
|
STELLITE NO.6 Faced
|
STELLITE NO.6 Faced
|
STELLITE NO.6 Faced
|
1
|
|
|
13
|
SEAL
RING
|
Duplex
SS + GRAPHITE
|
Duplex
SS + GRAPHITE
|
Duplex
SS + GRAPHITE
|
1
|
Laminated
|
|
316SS
+ ARAMID
|
316SS
+ ARAMID
|
316SS
+ ARAMID
|
|
|
|
|
|
316SS + CERMIC
|
316SS + CERMIC
|
316SS + CERMIC
|
|
|
|
A564-630 or 316SS + Nitr.
|
A564-630 or 316SS + Nitr.
|
A564-630 or 316SS + Nitr.
|
1
|
Solid Metal
Ring
|
|
34
|
LANTERN RING
|
410 SS
|
410 SS
|
316 SS
|
1
|
|
|
35
|
PLUG
GREASE FITTING
|
A105
|
410
SS
|
316
SS
|
1
|
|
|
CARBON
STEEL + Cr. Plating
|
316
SS
|
316
SS
|
1
|
|
|
36
|
DRAIN PLUG
|
A105
|
410 SS
|
316 SS
|
1
|
|
|
|
|
|
|
|
|
|
|
|
|
NOTE
|
|
1.
Nitr : Hardened by Nitriding, HCr : Hard
Cr. Plating, ENP. : Electroless Nickel Plating
|
|
2.
CLASS 150 & 300 : 316 SS Faced &
Integral
|
|
CLASS
600 & OVER : STELLITE NO.6 Faced
|
|
3.
RECOMMEND SPARE PARTS : PART NO.6, 13, 23,
28
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
