PRESSURE SEAL GATE VALVES - ESPECIFICACION MATERIALES
|
GATE VALVES
|
STANDARD MATERIAL SPECIFICATIONS
|
|
SERVICE RECOMMENDATION
- The gate valve is normally
used for on-off service. It is not recommended for
throttling.
- The gate valve is normally
installed to pipe horizontally and the valve stem
stands vertically. It can also be mounted to the vertical
direction with the stem facing to the opposite or
other directions except the vertical, provided that
a special construction is prepared depending on the
valve size, service conditions, or materials. In case
of valve purchase for a special purpose other than
the normal installation, the orientation of valve
should be specified.
- After the gate valve is
closed completely with a sufficient force enough to
shut off, the stem should be backed slightly about
1/8 to 1/4 turn to relieve the load on stem. This
will cause the stem to expand a little without valve
bending or damage, not affecting the valve shutoff.
|
|
|
|
|

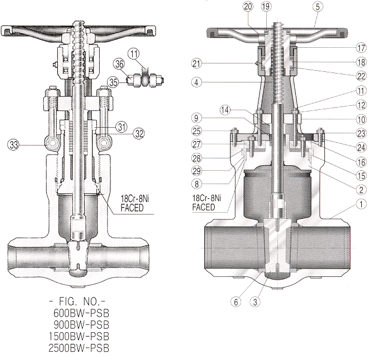

MATERIALS
(IN ACCORDANCE WITH ASTM)
|
|
NO
|
PART NAME
|
CARBON STEEL
|
ALLOY STEEL
|
STAINLESS STEEL
|
|
TYPE WCB
|
TYPE WC6
|
TYPE WC9
|
TYPE C5
|
TYPE C12
|
TYPE CF8M
|
|
1
|
BODY
|
A216-WCB
|
A217-WC6
|
A217-WC9
|
A217-C5
|
A217-C12
|
A351-CF8M
|
|
2
|
BONNET
|
A216-WCB
|
A217-WC6
|
A217-WC9
|
A217-C5
|
A217-C12
|
A351-CF8M
|
|
3
|
WEDGE
|
WCB + STL
|
WCB + STL
|
WC9 + STL
|
C5 + STL
|
C12 + STL
|
CF8M + STL
|
|
4
|
STEM
|
A479-410
|
A479-410
|
A479-410
|
A479-410
|
A479-410
|
A479-316
|
|
5
|
HAND
WHEEL
|
A197 or WCB
|
A197 or WCB
|
A197 or WCB
|
A197 or WCB
|
A197 or WCB
|
A197 or WCB
|
|
6
|
BODY
SEATRING
|
C/S 1020 + STL
|
A182F11 + STL
|
A182F22 + STL
|
A182F5a +STL
|
A182F9 + STL
|
A240-316 + STL
|
|
8
|
GASKET
|
SOFT STEEL
|
304 S.S
|
304 S.S
|
304 S.S
|
304 S.S
|
316 S.S
|
|
9
|
PACKING
|
GRAPHITE
|
GRAPHITE
|
GRAPHITE
|
GRAPHITE
|
GRAPHITE
|
GRAPHITE
|
|
10
|
GLAND
FLANGE
|
A283-D
|
A283-D
|
A283-D
|
A283-D
|
A283-D
|
A351-CF8
|
|
11
|
GLAND
BOLT
|
A307-B
|
A307-B
|
A307-B
|
A307-B
|
A307-B
|
A193-B8
|
|
12
|
GLAND
NUT
|
A307-B
|
A307-B
|
A307-B
|
A307-B
|
A307-B
|
A194-8
|
|
14
|
PACKING
GLAND
|
C/S 1020 + Cr
|
A479-410
|
A479-410
|
A479-410
|
A479-410
|
A479-316
|
|
15
|
BONNET
BOLT
|
A193-B7
|
A193-B16
|
A193-B16
|
A193-B16
|
A193-B16
|
A193-B8
|
|
16
|
BONNET
NUT
|
A194-2H
|
A194-4
|
A194-4
|
A194-4
|
A194-4
|
A194-8
|
|
17
|
YOKE
CAP
|
C/S 1020
|
C/S 1020
|
C/S 1020
|
C/S 1020
|
C/S 1020
|
C/S 1020 + Zn
|
|
18
|
YOKE
SLEEVE
|
A439-D2
|
A439-D2
|
A439-D2
|
A439-D2
|
A439-D2
|
A439-D2
|
|
19
|
HANDLE
NUT
|
C/S 1020
|
C/S 1020
|
C/S 1020
|
C/S 1020
|
C/S 1020
|
C/S 1020 + Zn
|
|
20
|
SET
SCREW
|
C/S 1020
|
C/S 1020
|
C/S 1020
|
C/S 1020
|
C/S 1020
|
C/S 1020
|
|
21
|
GREASE
NIPPLE
|
STEEL
|
STEEL
|
STEEL
|
STEEL
|
STEEL
|
STEEL
|
|
22
|
BEARING
|
STEEL
|
STEEL
|
STEEL
|
STEEL
|
STEEL
|
STEEL
|
|
23
|
YOKE
|
A216-WCB
|
A216-WCB
|
A216-WCB
|
A216-WCB
|
A216-WCB
|
A351-CF8
|
|
24
|
YOKE
BOLT
|
A193-B7
|
A193-B7
|
A193-B7
|
A193-B7
|
A193-B7
|
A193-B8
|
|
25
|
YOKE
NUT
|
A194-2H
|
A194-2H
|
A194-2H
|
A194-2H
|
A194-2H
|
A194-8
|
|
27
|
BONNET
CLAMP
|
C/S 1045
|
C/S 1045
|
C/S 1045
|
C/S 1045
|
C/S 1045
|
A204-304
|
|
28
|
RETAINER
|
C/S 1045 + Cr
|
A240-304
|
A240-304
|
A240-304
|
A240-304
|
A240-316
|
|
29
|
ADAPTER
RING
|
C/S 1045 + Cr
|
A240-304
|
A240-304
|
A240-304
|
A240-304
|
A240-316
|
|
31
|
BONNET
CLAMP
|
C/S 1045
|
C/S 1045
|
C/S 1045
|
C/S 1045
|
C/S 1045
|
A204-304
|
|
32
|
WASHER
|
A479-410
|
A479-410
|
A479-410
|
A479-410
|
A479-410
|
A204-304
|
|
33
|
HINGE
CLAMP
|
A216-WCB
|
A216-WCB
|
A216-WCB
|
A216-WCB
|
A216-WCB
|
A351-CF8
|
|
34
|
GLAND
BOLT
|
A307-B
|
A307-B
|
A307-B
|
A307-B
|
A307-B
|
A193-B8
|
|
35
|
GLAND
CLAMP
BOLT
|
A307-B
|
A307-B
|
A307-B
|
A307-B
|
A307-B
|
A193-B8
|
|
36
|
GLAND
CLAMP
NUT
|
A307-B
|
A307-B
|
A307-B
|
A307-B
|
A307-B
|
A194-8
|
|
|
|
|
