PRESSURE SEAL GATE VALVES #600 A #2500	PRESSURE SEAL GLOBE VALVES #600 A #2500
PRESSURE SEAL GATE VALVES - STANDARS	PRESSURE SEAL GLOBE VALVES - ESPECIFICACION MATERIALES
PRESSURE SEAL GATE VALVES - ESPECIFICACION MATERIALES

PRESSURE SEAL GATE VALVES #600 A #2500

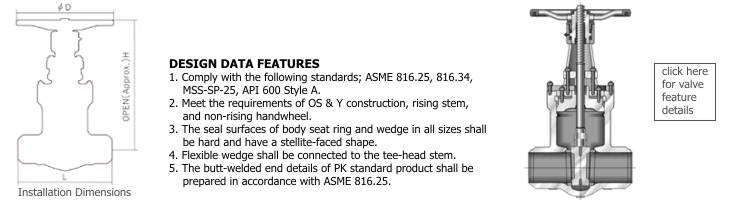

GATE VALVES
ANSI CLASS 600, 900, 1500, 2500

CLASS 600

SIZE	mm	50	80	100	150	200	250	300	350	400	450	500	600
SIZE	inch	2	3	4	6	8	10	12	14	16	18	20	24
L	mm	215.9	254	304.8	457.2	585.2	711.2	812.8	889	990.6	1092.2	1193.8	1397
L	inch	8.5	10	12	18	23	28	32	35	39	43	47	55
D	mm	200	315	355	450	500	630	710	800	900	900	1092	1092
D	inch	7.87	12.40	13.98	17.72	19.69	24.80	27.95	31.50	35.43	35.43	43.00	43.00
H	mm	507	583	710	906	1161	1348	1528	1685	2006	2192	2480	2869
H	inch	19.96	22.95	28	35.67	45.71	53.07	60.16	66.34	78.98	89.3	97.63	112.95

CLASS 900
SIZE	mm	50	80	100	150	200	250	300	350	400	450	500	600
SIZE	inch	2	3	4	6	8	10	12	14	16	18	20	24
L	mm	215.9	304.8	355.6	508	660.4	787.4	914.4	990.6	1092.2	1219.4	1320.8	1549.4
L	inch	8.5	12	14	20	26	31	36	39	43	48	52	61
D	mm	315	355	355	500	630	710	800	900	900	1092	1092	1296
D	inch	12.40	13.98	13.98	19.69	24.80	27.95	31.50	35.43	35.43	43.00	43.00	51.02
H	mm	586	628	740	946	1158	1455	1655	1775	2135	2318	2577	2717.8
H	inch	23.07	24.72	29.13	37.24	46.65	57.28	65.16	69.88	84.05	91.26	101.46	107

CLASS 1500
SIZE	mm	50	80	100	150	200	250	300	350	400	450	500	600
SIZE	inch	2	3	4	6	8	10	12	14	16	18	20	24
L	mm	215.9	304.8	406	559	711.2	863.6	990.6	1066.8	1193.8	1346.2	1473.2	1727.2
L	inch	8.5	12	16	22	28	34	39	42	47	53	58	68
D	mm	315	355	400	630	710	710	800	900	1092	1092	1296	1296
D	inch	12.40	13.98	15.75	24.80	27.95	27.95	31.50	35.43	43.00	43.00	51.02	51.02
H	mm	586	712	856	1061	1138.5	1397	1518	1640	2089	2247	2624	2921
H	inch	23.07	28.03	33.70	41.77	44.82	55.00	59.76	64.57	82.24	88.46	103.30	115.00

CLASS 2500
SIZE	mm	50	80	100	150	200	250	300	350	400	450	500	600
SIZE	inch	2	3	4	6	8	10	12	14	16	18	20	24
L	mm	279.4	368.3	457.2	610	762	914.2	1041.4	1118	1245	1397	1574.8	1676.4
L	inch	11	14.5	18	24	30	36	41	44	49	55	62	66
D	mm	355	400	450	630	710	710	800	900	1092	1296	1296	1500
D	inch	13.97	15.75	17.72	24.8	27.95	27.95	31.5	35.43	43	51.02	51.02	59
H	mm	674	692.5	805	1005	1341	1554	1689	1822	2298	2497	2717.8	2895.6
H	inch	26.53	27.26	31.69	39.56	52.79	61.18	66.49	71.73	90.47	98.31	107	114
