ISO 5211 Direct Mount Ball Valves Series
    1000 PSIG : V - 558 , V - 668
    2000 PSIG : V-355 , V-355FS

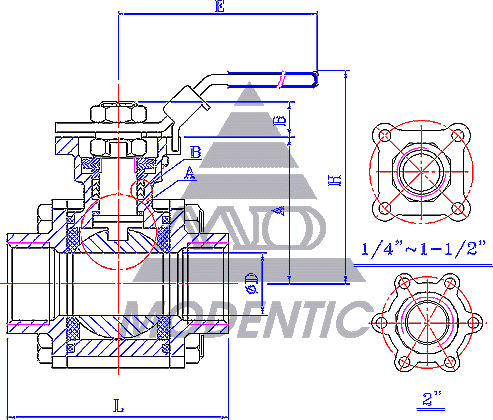

ISO 5211 Direct Mount Ball Valves Series   :   V-355 1/4" ~ 2"


V-355 Full Port 1/2" ~ 2" (DN 15~ DN 50)
V-355A Reduced Port 1/2" ~ 2" (DN 15~ DN 50)

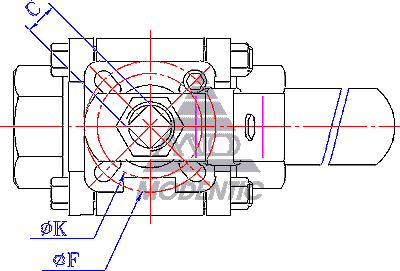

Direct-mounting of actuators to valves design
Blow-out-proof stem & Anti-Static design
Handle with locking device

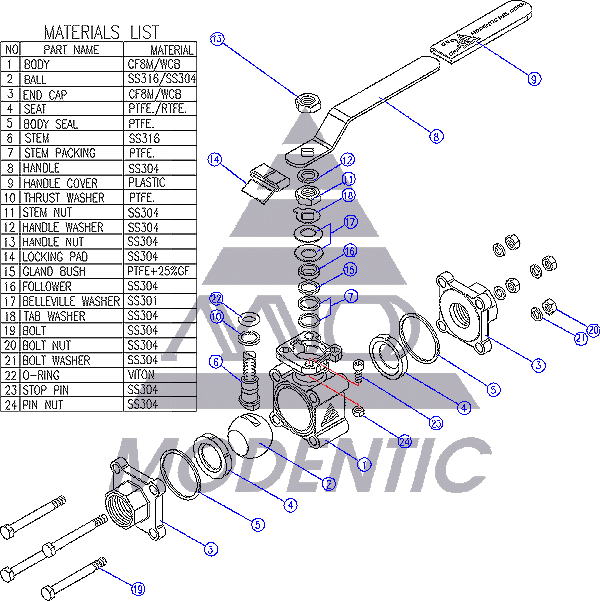

Design Specifications : ANSI B16.34 Class 600
Body : ASTM A-351 GR.CF8M (DIN 1.4408)
Ball : SS 316
Stem : SS 316
Seat : PTFE + 15% GF


Specifications :

End Connections : Threaded End
  Socket Weld End
  Butt Weld End
Working Pressure : 1/2"~1" 2000psi
  1-1/4"~2" 1500psi
Temperature Range : -60 to 450oF
