ISO 5211 Direct Mount Ball Valves Series
    1000 PSIG : V - 558 , V - 668
    2000 PSIG : V-355 , V-355FS

Three Piece Ball Valves Series   :   V-558  1/2" ~ 4"


Fig NO : V - 558
  Full Port 1/2" ~ 4" (NW 10~ NW 100)
  Blow-out-proof stem design

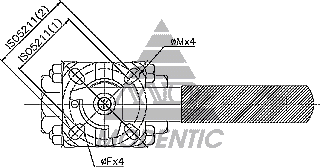

  ISO 5211 Mounting Flange

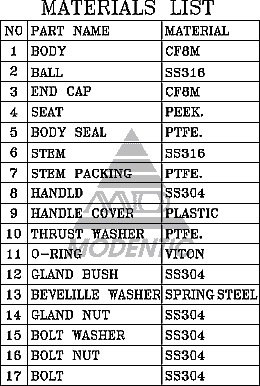

  Body : ASTM A-351 GR.CF8M (DIN 1.4408)
  Ball : SS 316
  Stem : SS 316
  Seat : PTFE

  End Connections :

 Threaded End
  Socket Weld End
  Butt Weld End
  Flanged End
  Extended Butt Weld End

  Working Pressure :

 1/4"~2" 1000 psi(CWP)
  2-1/2"~4" 800 psi(CWP)
  Temperature Range : -60 to 450oF(-40 ~ 218oC)
  Options : Padlocking Device
