One Piece Ball Valves Series
      800 PSIG : V-003P , V-003H , V-010H
    2000 PSIG : V-004H

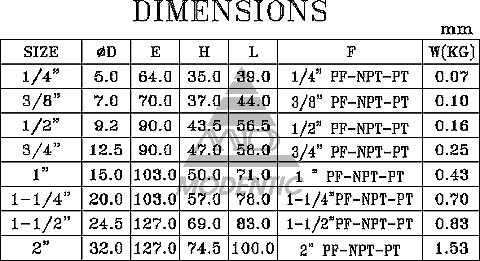

One Piece Ball Valves Series   :   V-003P 1/4" ~ 2"

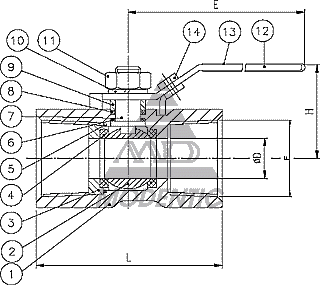

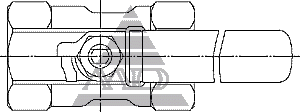

Fig NO : V - 003P
  Reduced Port 1/4" ~ 2" (NW 10~ NW 50)
  Blow-out-proof stem design

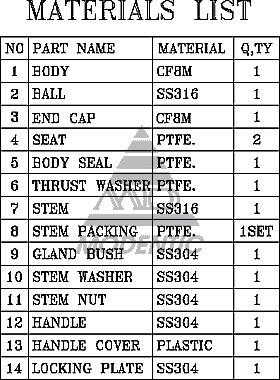

  Body : ASTM A-351 GR.CF8M (DIN 1.4408)
  Ball : SS 316
  Stem : SS 316
  Seat : PTFE
  End Connections : Threaded End
  Working Pressure(CWP) : 1/4" ~ 2" 800psi
  Temperature Range : -60 to 450oF(-40 TO 218oC)
  Option : Pad Locking device
  Threaded Type : ANSI B1.20.1(NPT)
  DIN 259 / DIN 2999
 ISO 228, BSP, PT
