One Piece Ball Valves Series

800 PSIG : V-003P , V-003H , V-010H

2000 PSIG : V-004H

One Piece Ball Valves Series : V-010H 1/4" ~ 2"

Fig NO : V - 010H
Reduced Port 1/4" ~ 1" (NW 10~ NW 50)
Blow-out-proof stem design

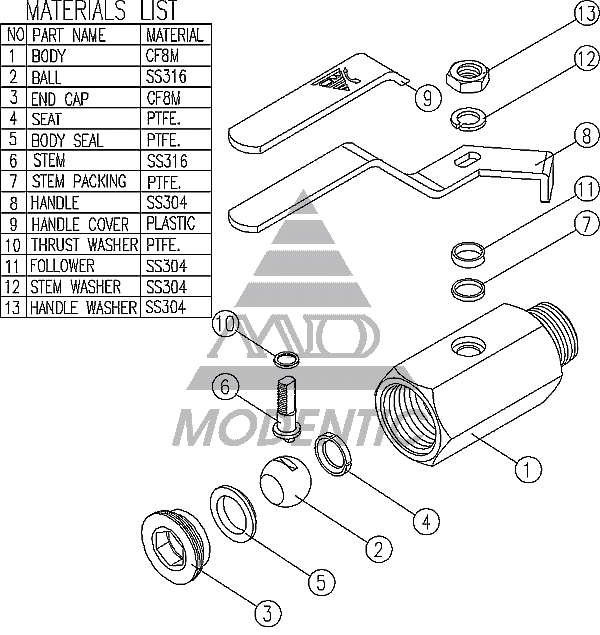

Body : ASTM A-351 GR.CF8M (DIN 1.4408)
Ball : SS 316
Stem : SS 316
Seat : PTFE
End Connections : Male X Female
Working Pressure : 1/4" ~2" 800psi
Temperature Range : -60 to 450^oF
Threaded Type : ANSI B1.20.1(NPT)
DIN 259 / DIN 2999
ISO 228 , BSP , PT
