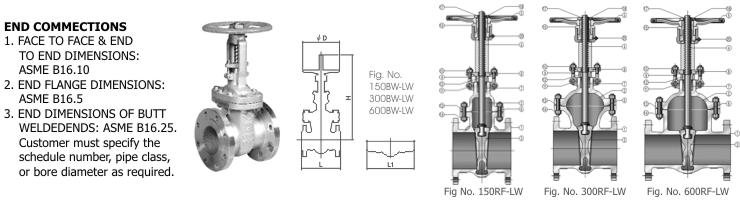

STANDARD MATERIAL SPECIFICATIONS (GATE)

NO

PART NAME

TYPE CF8M

TYPE CF8

TYPE CF3M

TYPE CF3

TYPE CN7M

1

BODY

A351-CF8M

A351-CF8

A351-CF3M

A351-CF3

A351-CN7M

2

BONNET

A351-CF8M

A351-CF8

A351-CF3M

A351-CF3

A351-CN7M

3

WEDGE

A351-CF8M

A351-CF8

A351-CF3M

A351-CF3

A351-CN7M

4

STEM

A479-316

A479-304

A479-316L

A479-304L

B473

5

HAND WHEEL

A197 or WCB

A197 or WCB

A197 or WCB

A197 or WCB

A197 or WCB

6

GASKET

316 S.S

316 S.S

316 S.S

316 S.S

316 S.S

7

PACKING

GRAPHITE

GRAPHITE

GRAPHITE

GRAPHITE

GRAPHITE

8

GLAND FLANGE

A351-CF8

A351-CF8

A351-CF8

A351-CF8

A351-CF8

9

HINGE BOLT

A193-B8

A193-B8

A193-B8

A193-B8

A193-B8

10

HINGE NUT

A194-8

A194-8

A194-8

A194-8

A194-8

11

HINGE PIN

A479-304

A479-304

A479-304

A479-304

A479-304

12

PACKING GLAND

A479-316

A479-304

A479-316L

A479-304L

B473

13

BONNET BOLT

A193-B8

A193-B8

A193-B8

A193-B8

A193-B8

14

BONNET NUT

A194-8

A194-8

A194-8

A194-8

A194-8

15

YOKE CAP

C/S 1020 + Cr

C/S 1020 + Cr

C/S 1020 + Cr

C/S 1020 + Cr

C/S 1020 + Cr

16

YOKE SLEEVE

A439-D2

A439-D2

A439-D2

A439-D2

A439-D2

17

HANDLE NUT

304 S.S

304 S.S

304 S.S

304 S.S

304 S.S

18

SET SCREW

C/S 1020 + Cr

C/S 1020 + Cr

C/S 1020 + Cr

C/S 1020 + Cr

C/S 1020 + Cr

19

GREASE NIPPLE

STEEL + Cr

STEEL + Cr

STEEL + Cr

STEEL + Cr

STEEL + Cr

20

YOKE

A351-CF8

A351-CF8

A351-CF8

A351-CF8

A351-CF8

21

YOKE BOLT

A193-B8

A193-B8

A193-B8

A193-B8

A193-B8

22

YOKE NUT

A194-8

A194-8

A194-8

A194-8

A194-8
