Válvulas > Acero Inoxidable > Válvula Compuerta > Gate Valves 150-600

GATE VALVES #150 A #600
ESPECIFICACION MATERIALES

GATE VALVES #150 A #600

GATE VALVES

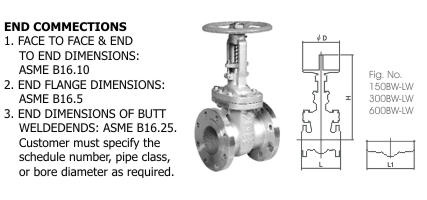

ANSI CLASS 150, 300 and 600 / OUTSIDE SCREW and YOKE, RISING STEM, FLEXIBLE WEDGE

DIMENSION (MM AND INCH) CLASS 150
SIZE	mm	15	20	25	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600
SIZE	INCH	1/2	3/4	1	1 1/2	2	2 1/2	3	4	5	6	8	10	12	14	16	18	20	24
L(RF)	mm	108	117.5	127	165.1	177.8	190.5	203.2	228.6	254	266.7	292.1	330.2	355.6	381	406.4	431.8	457.2	508
L(RF)	INCH	4 1/4	4 5/8	5	6 1/2	7	7 1/2	8	9	10	10 1/2	11 1/2	13	14	15	16	17	18	20
L1(BW)	mm	108	117.5	127	165.1	215.9	241.3	282.6	304.8	381	403.2	419.1	457.2	501.7	571.5	609.6	660.4	711.2	812.8
L1(BW)	INCH	4 1/4	4 5/8	5	6 1/2	8 1/2	9 1/2	11 1/8	12	15	15 7/8	16 1/2	18	19 3/4	22 1/2	24	26	28	32
H (OPEN)	mm	191	199	233	285	333	383	424	531	638	730	936	1114	1369	1550	1823	1900	2120	2502
H (OPEN)	INCH	7.48	7.83	9.17	11.22	13.11	15.08	16.69	20.86	25.12	28.74	36.85	43.86	53.89	61.02	71.80	74.80	83.46	98.50
D	mm	100	100	120	140	160	180	200	250	315	315	355	355	450	500	560	630	710	800
D	INCH	3.94	3.94	4.72	5.51	6.30	7.09	7.87	9.84	12.40	12.40	13.98	13.98	17.72	19.69	22.05	24.80	27.95	31.50

DIMENSION (MM AND INCH) CLASS 300
SIZE	mm	15	20	25	40	50	65	80	100	125	150	200	250	300	350	400	450	500	600
SIZE	INCH	1/2	3/4	1	1 1/2	2	2 1/2	3	4	5	6	8	10	12	14	16	18	20	24
L(RF)	mm	139.7	152.4	165.1	190.5	215.9	241.3	282.6	304.8	381	403.2	419.1	457.2	501.7	762	838.2	914.4	990.6	1143
L1(BW)	INCH	5 1/2	6	6 1/2	7 1/2	8 1/2	9 1/2	11 1/8	12	15	15 7/8	16 1/2	18	19 3/4	30	33	36	39	45
H (OPEN)	mm	208	211	303	349	390	432	491	588	630	802	1002	1216	1582	1728	1907	2142	2350	2746
H (OPEN)	INCH	8.19	8.30	11.93	13.74	15.35	17.00	19.33	23.15	24.80	31.57	39.45	47.87	62.28	68.03	75.08	84.33	92.52	108.11
D	mm	100	100	160	180	200	200	224	250	315	355	400	450	500	560	630	710	800	900
D	INCH	3.93	3.93	4.72	7.09	7.87	7.87	8.82	9.84	12.40	13.98	15.75	17.72	19.69	22.05	24.80	27.95	31.50	35.43

DIMENSION (MM AND INCH) CLASS 600
SIZE	mm	40	50	65	80	100	125	150	200	250	300
SIZE	INCH	1 1/2	2	2 1/2	3	4	5	6	8	10	12
L(RF)	mm	241.3	292.1	330.2	355.6	431.8	508	558.8	660.4	787.4	838.2
L1(BW)	INCH	9 1/2	11 1/2	13	14	17	20	22	26	31	33
H (OPEN)	mm	399	419	457	511	635	772	853	1075	1243	1456
H (OPEN)	INCH	15.71	16.50	17.99	20.12	25.00	30.39	33.58	42.45	48.87	57.32
D	mm	180	200	224	250	355	400	450	500	630	710
D	INCH	7.09	7.87	8.82	9.84	13.98	15.75	17.72	19.68	24.80	27.95
