Especificación Materiales
|

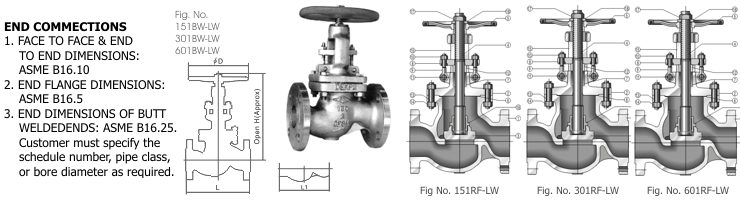

GLOBE VALVES
|
STANDARD MATERIAL SPECIFICATIONS
|
|
|
STANDARD MATERIAL SPECIFICATIONS
(GLOBE)
|
|
NO
|
PART NAME
|
TYPE CF8M
|
TYPE CF8
|
TYPE CF3M
|
TYPE CF3
|
TYPE CN7M
|
|
1
|
BODY
|
A351-CF8M
|
A351-CF8
|
A351-CF3M
|
A351-CF3
|
A351-CN7M
|
|
2
|
BONNET
|
A351-CF8M
|
A351-CF8
|
A351-CF3M
|
A351-CF3
|
A351-CN7M
|
|
3
|
DISC
|
A351-CF8M
|
A351-CF8
|
A351-CF3M
|
A351-CF3
|
A351-CN7M
|
|
4
|
STEM
|
A479-316
|
A479-304
|
A479-316L
|
A479-304L
|
B473
|
|
5
|
HAND
WHEEL
|
A197
or WCB
|
A197
or WCB
|
A197
or WCB
|
A197
or WCB
|
A197
or WCB
|
|
6
|
GASKET
|
316
S.S
|
316
S.S
|
316
S.S
|
316
S.S
|
316
S.S
|
|
7
|
PACKING
|
GRAPHITE
|
GRAPHITE
|
GRAPHITE
|
GRAPHITE
|
GRAPHITE
|
|
8
|
GLAND
FLANGE
|
A351-CF8
|
A351-CF8
|
A351-CF8
|
A351-CF8
|
A351-CF8
|
|
9
|
HINGE
BOLT
|
A193-B8
|
A193-B8
|
A193-B8
|
A193-B8
|
A193-B8
|
|
10
|
HINGE
NUT
|
A194-8
|
A194-8
|
A194-8
|
A194-8
|
A194-8
|
|
11
|
HINGE
PIN
|
A479-304
|
A479-304
|
A479-304
|
A479-304
|
A479-304
|
|
12
|
PACKING
GLAND
|
A479-316
|
A479-304
|
A479-316L
|
A479-304L
|
B473
|
|
13
|
BONNET
BOLT
|
A193-B8
|
A193-B8
|
A193-B8
|
A193-B8
|
A193-B8
|
|
14
|
BONNET
NUT
|
A194-8
|
A194-8
|
A194-8
|
A194-8
|
A194-8
|
|
15
|
YOKE
BUSH
|
A439-D2
|
A439-D2
|
A439-D2
|
A439-D2
|
A439-D2
|
|
16
|
LOCK
NUT
|
A479-316
|
A479-304
|
A479-316L
|
A479-304L
|
B473
|
|
17
|
HANDLE
NUT
|
A194-8
|
A194-8
|
A194-8
|
A194-8
|
A194-8
|
|
18
|
WASHER
|
A479-304
|
A479-304
|
A479-304
|
A479-304
|
A479-304
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
