GLOBE VALVES #150 A #600
ESPECIFICACION MATERIALES

GLOBE VALVES #150 A #600

GLOBE VALVES

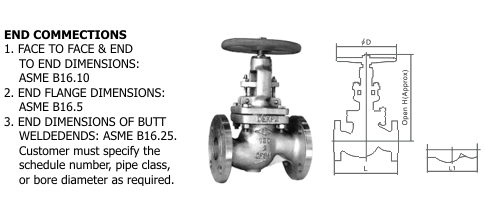

CLASS 150, 300 and 600 / OUTSIDE SCREW and YOKE, RISING STEM, PLUG DISC

DIMENSION (MM AND INCH) CLASS 150
SIZE	mm	15	20	25	40	50	65	80	100	150	200	250	300
SIZE	INCH	1/2	3/4	1	1 1/2	2	2 1/2	3	4	6	8	10	12
L(RF)	mm	108	117.5	127	165.1	203.2	216	241.3	292.1	406.4	495.3	622.3	698.5
L1(BW)	INCH	4 1/4	4 5/8	5	6 1/2	8	8 1/2	9 1/2	11 1/2	16	19 1/2	24 1/2	27 1/2
H (OPEN)	mm	188	196	226	259	266	281	342	377	429	558	755	825
H (OPEN)	INCH	7.50	7.81	8.90	10.25	10.47	11.06	13.46	14.84	16.89	21.97	30.51	32.48
D	mm	100	100	140	180	180	200	224	280	355	355	400	400
D	INCH	3.94	3.94	5.51	7.09	7.09	8.87	8.82	11.02	13.98	13.98	15.75	15.75

DIMENSION (MM AND INCH) CLASS 300
SIZE	mm	15	20	25	40	50	65	80	100	150	200	250	300
SIZE	INCH	1/2	3/4	1	1 1/2	2	2 1/2	3	4	6	8	10	12
L(RF)	mm	152.4	177.8	203.2	228.6	266.7	292.1	317.5	355.6	444.5	558.8	622.3	711.2
L1(BW)	INCH	6	7	8	9	10 1/2	11 1/2	12 1/2	14	17 1/2	22	24 1/2	28
H (OPEN)	mm	185	194	224	267	330	354	383	443	567	696	779	989
H (OPEN)	INCH	7.28	7.64	8.82	10.51	12.99	13.93	15.08	17.44	22.32	27.40	30.67	38.93
D	mm	100	100	140	180	180	200	224	280	355	400	450	500
D	INCH	3.94	3.94	5.51	7.09	7.09	8.87	8.82	11.02	13.98	15.75	17.72	19.69

DIMENSION (MM AND INCH) CLASS 600
SIZE	mm	40	50	65	80	100	150	200
SIZE	INCH	1 1/2	2	2 1/2	3	4	6	8
L(RF)	mm	241.3	292.1	330.2	355.6	431.8	558.8	660.4
L1(BW)	INCH	9 1/2	11 1/2	13	14	17	22	26
H (OPEN)	mm	295	347	430	478	531	675	721
H (OPEN)	INCH	11.06	13.66	16.93	18.82	20.87	26.57	28.39
D	mm	200	224	280	315	355	500	560
D	INCH	7.87	8.82	11.02	12.04	13.98	19.69	22.05
