Three Pieces Ball Valves Series
    1000 PSIG : V-558 , V-258 , V-205T , V-205W , V-205S
                           V-005C , V-005E , V-005K , V-005G
    2000 PSIG : V-255 , MK-855EB , MK-855TC

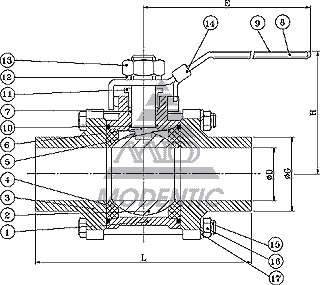

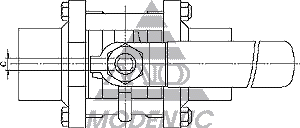

Three Piece Ball Valves Series   :   V-005E 1/4" ~ 2"


Specifications :

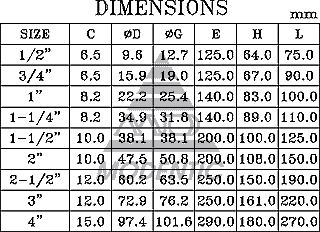

  Full Port 1/4" ~ 4" (NW 15 ~ NW 100)
  Blow-out-proof stem design

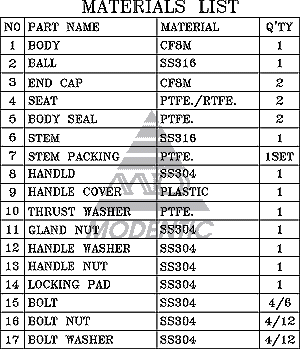

  Body : ASTM A-351 GR.CF8M (DIN 1.4408)
  Ball : SS 316
  Stem : SS 316
  Seat : PTFE
  End Connections : Tubing End

  Working Pressure :

 1/4"~2" 1000 psi
  2-1/2"~4" 800 psi
  Temperature Range : -60 to 450oF(-40 ~ 218oC)
  Options : Padlocking Device,
  Actuator mounting bracket.
  Cavity Filler
