Two Pieces Ball Valves Series
      800 PSIG : V-011H
    1000 PSIG : V-668 , V-204 , V-206 , V-207
    2000 PSIG : V-208 , V-266 , V-209

Two Piece Ball Valves Series   :   V-011H 1/4" ~ 2"

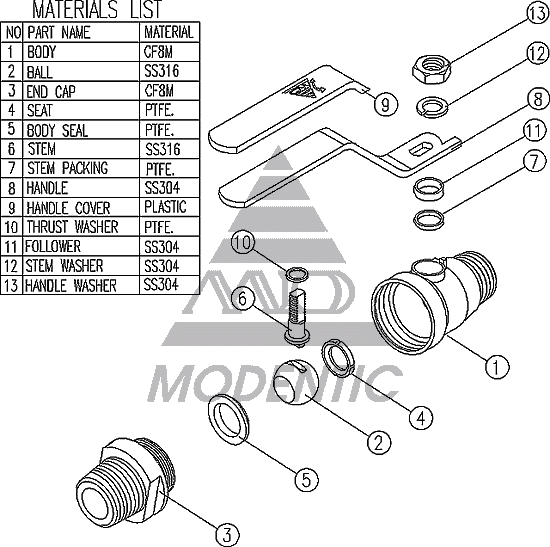

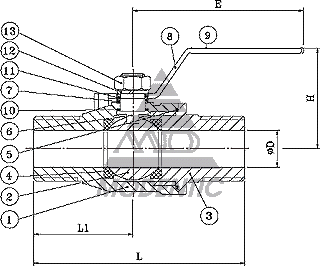

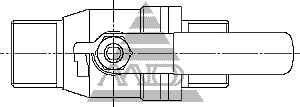

Fig NO : V - 011H
  Reduced Port 1/4" ~ 2" (NW 10~ NW 50)
  Blow-out-proof stem design
  Body : ASTM A-351 GR.CF8M (DIN 1.4408)
  Ball : SS 316
  Stem : SS 316
  Seat : PTFE
  End Connections : Male End
  Working Pressure : 1/4" ~ 2" 1000psi
  Temperature Range : -60 to 450oF(-40 to 218oC)
  Threaded Type : ANSI B1.20.1(NPT)
  DIN 259 / 2999
  ISO 228 , BSP , PT
