| Two Piece
Ball Valves Series : V-207 1/4"
~ 2" |
 |
V-355M Full Port 1/2" ~ 2" (DN 15~ DN 50)
V-355MA Reduced Port 1/2" ~ 2" (DN 15~ DN 50)

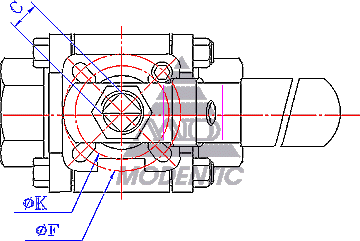

Direct-mounting of actuators to valves design
Blow-out-proof stem & Anti-Static design
Handle with locking device
Design Specifications : ANSI B16.34 Class 600
Body : ASTM A-351 GR.CF8M (DIN 1.4408)
Ball : SS 316
Stem : SS 316

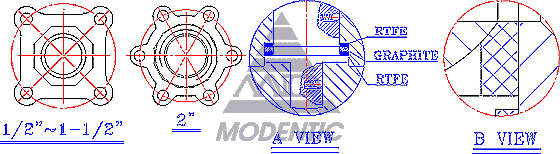

Seat : PTFE + 15% GF
|
| |
|
| |
|
 |
Specifications :
| End Connections : |
Threaded End |
| |
Socket Weld End |
| |
Butt Weld End |

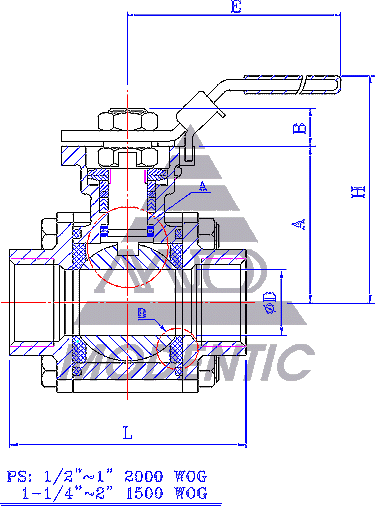

| Working Pressure : |
1/2"~1" 2000psi |
| |
1-1/4"~2" 1500psi |
Temperature Range : -60 to 450oF |
|
| |
|
|
|
