Two Pieces Ball Valves Series
      800 PSIG : V-011H
    1000 PSIG : V-668 , V-204 , V-206 , V-207
    2000 PSIG : V-208 , V-266 , V-209

Two Piece Ball Valves Series   :   V-266  1/4" ~ 2"

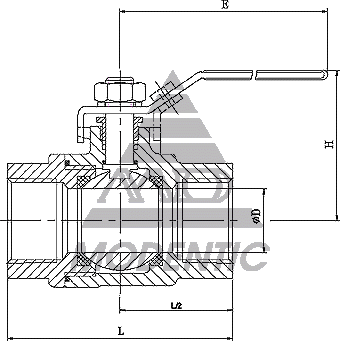

Fig NO : V - 266

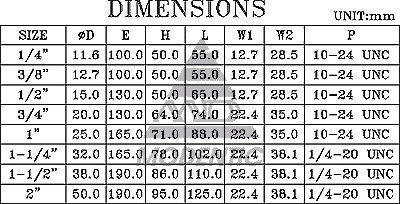

  Full Port 1/4" ~ 2" (NW 10 ~ NW 50)
  Blow-out-proof stem design

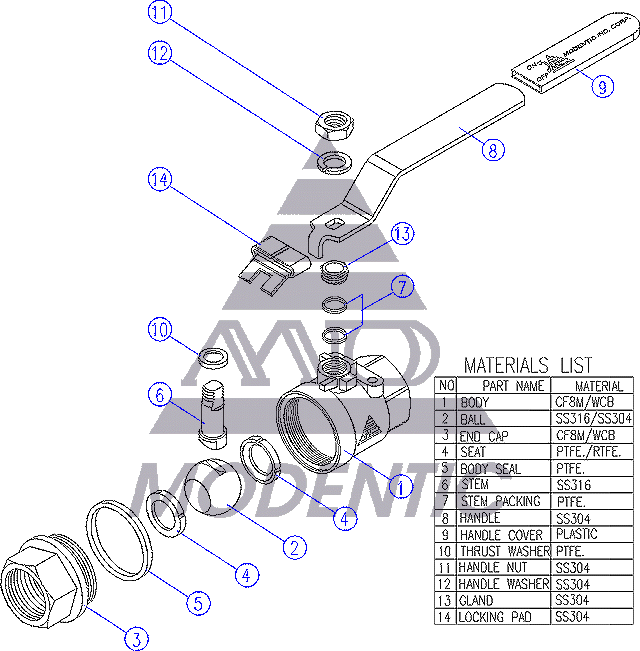

  Body : ASTM A-351 GR.CF8M (DIN 1.4408)
  Ball : SS 316
  Stem : SS 316
  Seat : PTFE + 15%GF
  End Connections : Threaded End
  Working Pressure : 1/4" ~1" 2000psi
  1-1/4"~2" 1500psi
  Temperature Range : -60 to 450oF(-40 ~ 218oC)

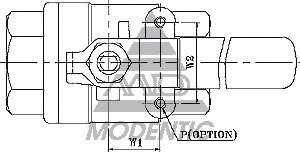

  Options : Padlocking device
  Threaded Type : ANSI B1.20.1(NPT)
  DIN 259 / 2999
  ISO 228 , BSP , PT
