Two Pieces Ball Valves Series
      800 PSIG : V-011H
    1000 PSIG : V-668 , V-204 , V-206 , V-207
    2000 PSIG : V-208 , V-266 , V-209

Two Piece Ball Valves Series   :   V-204  1/4" ~ 2"

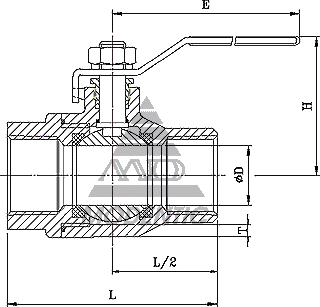

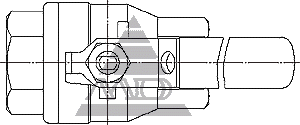

Fig NO : V - 204

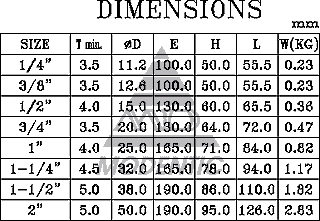

  Full Port 1/4" ~ 2" (DN 10~ DN 50)
  Blow-out-proof stem design

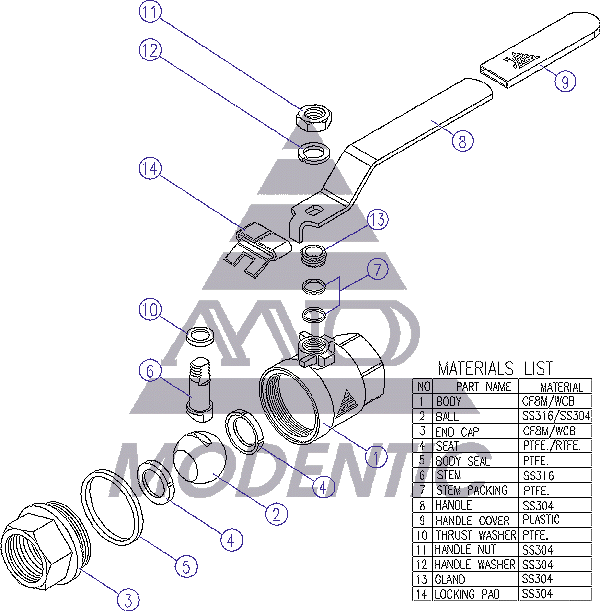

  Body : ASTM A-351 GR.CF8M (DIN 1.4408)
  Ball : SS 316
  Stem : SS 316
  Seat : PTFE
  End Connections : Threaded End
  Working Pressure : 1/4"~2" 1000psi
  Temperature Range : -60 to 450oF(-40 ~218oC)
  Threaded Type : ANSI B1.20.1 (NPT)
  DIN 259 / 2999
  ISO 228, BSP , PT
